Product

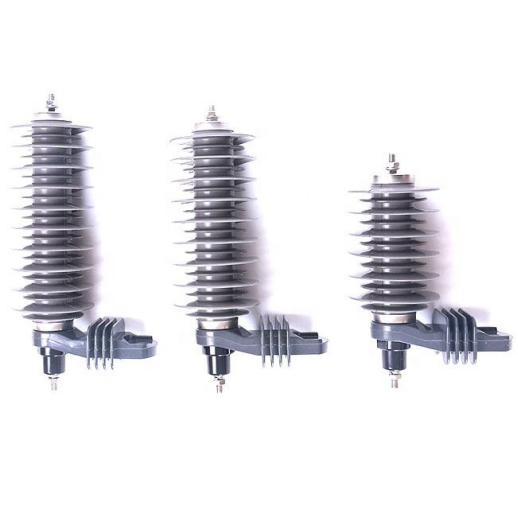

Distribution class surge arresters

5kA 3~36kV, 6kV,9kV,11kV,12kV,15kV,18kV,21kV,24kV,27kV,30kV,33kV,36kV surge arrester

Product Description

Discharge current 放電電流	Specification型號	Rated voltage 額定電壓	MCOV 持續運行電壓	Residual voltage 殘壓峰值			Current impulse withstand capability 電流沖擊耐受能力
Discharge current 放電電流	Specification型號	Rated voltage 額定電壓	MCOV 持續運行電壓	Steep current impulse 陡坡沖擊電流下	Switching current impulse 操作沖擊電流下	lighting current impulse8/20標準雷電流下	4/10us 大電流	2ms 方波
kA		kV	kV	≤kV	≤kV	≤kV	kA	A
5	YH5W-3	3	2.55	9.5	7.7	9	65	100
	YH5W-6	6	5.1	19.5	15.4	18	65	100
	YH5W-9	9	7.65	28.5	23.1	27	65	100
	YH5W-12	12	10.2	38	30.8	36	65	100
	YH5W-15	15	12.7	47.5	38.5	45	65	100
	YH5W-18	18	15.3	57	46.2	54	65	100
	YH5W-24	24	19.2	76	61.6	72	65	100
	YH5W-21	21	17	66.5	53.9	63	65	100
	YH5W-27	27	21.9	85.5	69.3	81	65	100
	YH5W-30	30	24.4	95	76.5	90	65	100
	YH5W-33	33	26.8	104.5	84.7	99	65	100
	YH5W-36	36	29	114	92.4	108	65	100
10	YH10W-3	3	2.55	9.5	7.7	9	100	250
	YH10W-6	6	5.1	19.5	15.4	18	100	250
	YH10W-9	9	7.65	28.5	23.1	27	100	250
	YH10W-12	12	10.2	38	30.8	36	100	250
	YH10W-15	15	12.7	47.5	38.5	45	100	250
	YH10W-18	18	15.3	57	46.2	54	100	250
	YH10W-21	21	17	66.5	53.9	63	100	250
	YH10W-24	24	19.2	76	61.6	72	100	250
	YH10W-27	27	21.9	85.5	69.3	81	100	250
	YH10W-30	30	24.4	95	76.5	90	100	250
	YH10W-33	33	26.8	104.5	84.7	99	100	250
	YH10W-36	36	29	114	92.4	108	100	250

Products are strictly in accordance with GB, IEC, IEEE and other standards

　　Through Kema, CEPRI, XIHARI and other test reports

　　It has excellent nonlinear volt ampere characteristics.

　　Simple structure, no gap, small size, light weight.

　　Fast action response and good protection performance.

　　Large flow capacity.

　　No continuous current, able to withstand multiple lightning overvoltage or switching overvoltage.

　　Good pollution resistance.
